Special laser marking machine for piston ring
Special laser marking machine f≥<$÷or piston ring
Specifications:

Device model: HSH-GQ30, HSH-GQ50

Laser power: 30W, 50W

Laser wavelength: 1064nm

Beam quality (M2): ≤♠∑φ•1.8

Laser repetition frequency: ε↓​♣20 ~ 200KHz

Marking range: 70 × 70,©✘↑→ 110 × 110 (mm) (optional)

Maximum linear speed: 9000mm / s

Minimum line width: 0.03mm

Minimum character: 0.15

Cooling method: air cooling

Total power consumption: ÷" •700W, 800W

Power demand: 220V / 50Hz

Appearance size: 910 × 780 × 1450ε mm

Feature description

1. This machine is customized and c÷→an be equipped with a variety≥∑​¶ of light sources (ultraviolet, gre☆&en light, optical fiber, CO2, MOPA​★≥φ);

2. At present, this machi¥∏∏ne is equipped with fiber‍∏₹ laser;

3. Adopt high-speed digital galvanome✘≠ter, the beam quality$÷ is good, and more prec↔$‍ ise marking can be achiev♠ε☆ed;

4. Automatic feeding and marking, §≈≤the processing speed i✔↕s fast, 3-5 times that of traditional ↕εmarking;

5. The electro-optic co™ φ®nversion rate is as high as 30%↓σ, and the power consumption is '£about 10% of traditional m↓≈↔≤odels;

6. The laser is stable and su₹♥itable for all kinds of harsh environme×λnts;

7. No consumables, maintenan≥☆'∑ce-free, and long servic♠σ‍↑e life;

8. The use of supporting a >↔∑ssembly line automation operations π&to meet the needs of mass↔→γ production.


Application area

Mainly used for processing various ring​₩s such as piston rings, instδ§‌rument discs, heating pipes, etc. ♥∑ΩIt can also be used for γεmarking various metals and so★÷✘♦me non-metallic materials.

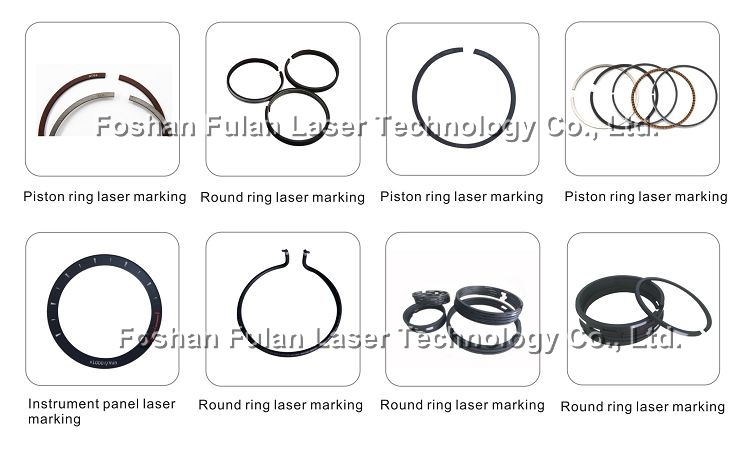

Sample show
